Bravo I XS Pro Finished 15 1/4 X 28 Mercury RH 831916L60

Mercury Bravo I XS Pro Finished 15 1/4 X 28 RH 831916L60

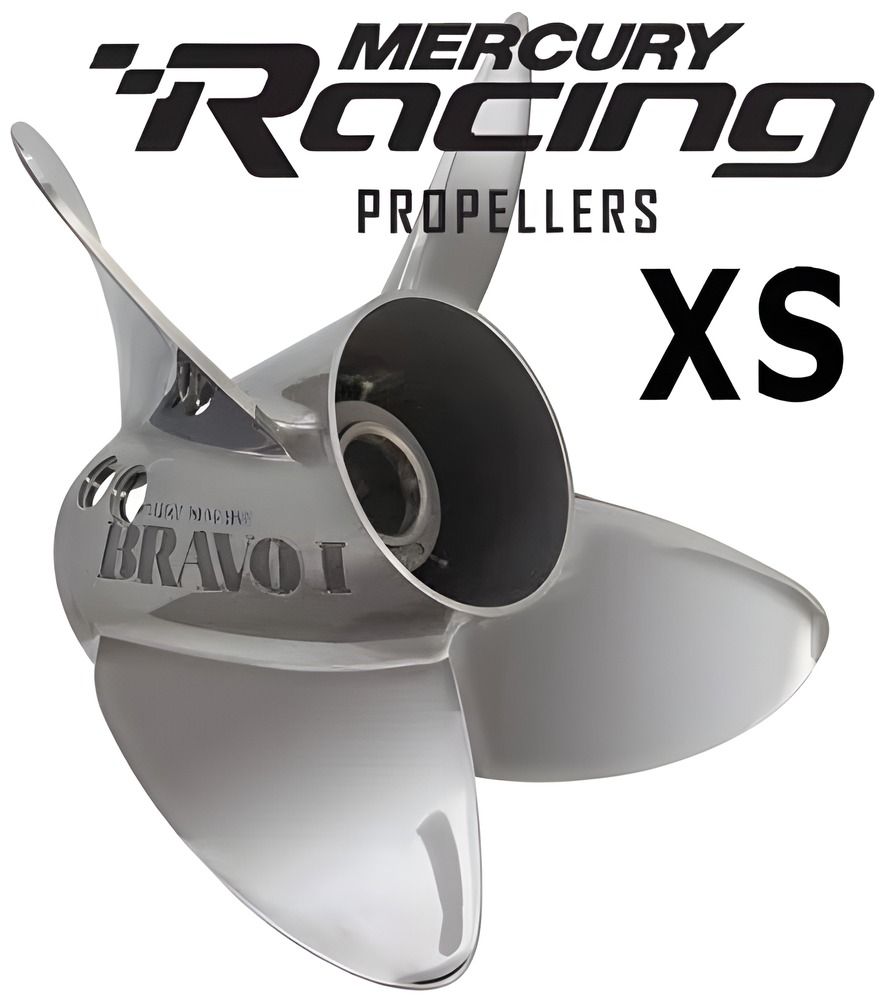

The Mercury Racing Pro Finish Bravo I® XS outboard propeller offers excellent time-to-plane performance, strong mid-range punch, and awesome top-end speed for bass, flats, cat flats, and performance center-console bay boats. The dual Mercury Performance Vent System® (PVS®) holes enable the operator to fine tune the amount of venting needed for quick planing. The stainless steel prop, designed for use on Mercury V6 OptiMax, OptiMax XS and OptiMax Pro XS outboards, features four robust blades and a tuned exhaust tube. The shortened exhaust tube provides greater top-end speed, while minimizing stern lift for improved boat handling and performance.

Half-inch pitch models enable operators to precision tune performance-oriented bass boats and center consoles for maximum power and efficiency. And, for some applications, the half-inch pitch will offer additional bow lift for enhanced top speed as well. The new half-inch pitch offerings benefit on-plane performance, mid-range fuel economy and top speed for single-engine four stroke applications. The action of the Mercury Performance Vent System® can easily be adjusted by simply adding PVS® fittings.

The Bravo I XS offers excellent time-to-plane performance, sweet mid-range punch, and awesome top-end speeds for bass, flats, cat flats, and performance center-console bay boats. The Bravo I XS shares the same barrel and blade design as the Bravo I FS, but has eight vent holes for added planing performance in two-stroke applications. The Bravo I XS can also be used with four-stroke engines when the vent holes are plugged.

• Equipped with Performance Vent System (PVS) allowing exhaust adjustment for planing
• Designed for 150-400 HP outboards primary target is Pro XS and XS engines, and now with the controllable venting system four stroke outboards may benefit with the one half pitch offerings.
• Excellent mid-range acceleration and the tuned exhaust tube provides bow and stern lift for awesome top end speeds
• Excellent prop for heavy and fully loaded walleye, bass, flats and some ultra-high speed bass boats
• According to the Mercury Propeller Handbook, it suggested that if replacing a 3-blade propeller you should move up 1" of pitch to maintain similar RPMs
• Also, according the Mercury Propeller Handbook, if replacing the Fury, Revolution 4, or standard Bravo I you should move up 2" of pitch to maintain similar RPMs.

• Hub kit sold separately, see the fitment information below to select the correct hub kit for your application.

Mercury 90-115HP Command Thrust Outboards

• 90-115HP Command Thrust (CT), 2014-Newer
• Note: This will only fit the 90-115 Command Thrust gearcase, it will not fit a standard 90-115 gearcase
• Use Hub Kit 8M0150151

Mercury 135-400HP Outboards

• 135-400HP Outboards, 1978-Newer
• Use Hub Kit 835257K6 for all 2-Stroke outboards with 1.0" prop shaft
• Use Hub Kit 8M0150151 for 135-225HP 4-Stroke outboards with 1.0" prop shaft
• Use Hub Kit 8M0101602 for 225+HP 4-Stroke outboards with 1.0" prop shaft
• Use Hub Kit 8M0101601 for all 1.25" prop shaft applications (V8 Four stroke & 350-450 Verado)

Non-Mercury Outboards (4.75" Gearcase)

• Evinrude/Johnson/OMC (1991 and newer) - Use Hub Kit 8M0119081
• Evinrude/Johnson/OMC (1990 and older) - Use Hub Kit 8M0119082
• Evinrude E-TEC G2 (2015 and newer) - Use Hub Kit 8M0107220
• Honda 135-225HP - Use Hub Kit 835278Q1
• Suzuki 150-300HP - Use Hub Kit 835281Q1
• Yamaha 150-300 HP including SHO (2015 and newer) - Use Hub Kit 835274Q1
• Yamaha 200-250 HP SHO (2014 and older) - Use Hub Kit 835274Q1
